Weather Station Data Logger

1.Introduction to Weather Station Data Logger Products

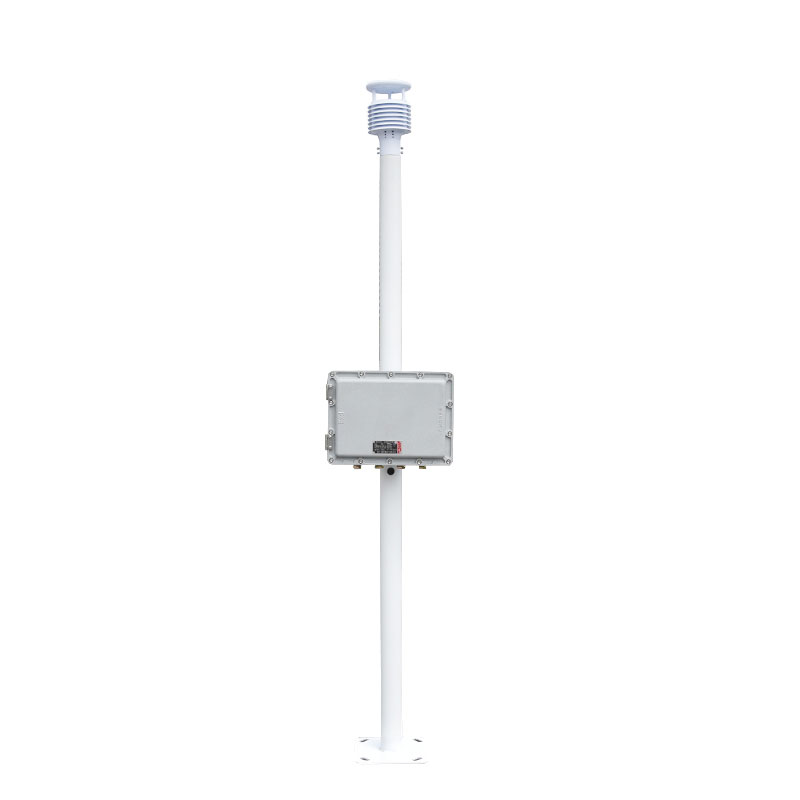

Weather Station Data Logger is used to measure and record weather environment sensor data such as wind speed, wind direction, air temperature, humidity, and atmospheric pressure.Weather Station Data Logger is an integrated meteorological station developed and produced by Fengtu IoT based on market demand for special places such as chemical plants and oil depots.It integrates data collection, storage, communication and uploading, and connects with the backend computer management software or central control room PLC and DCS through wired communication to perform data processing and analysis.

Weather Station Data Logger adopts the design concept of high protection grades such as corrosion protection, explosion protection, waterproof, shockproof, and dustproof, which can meet the needs of chemical plants, oil depots, tunnels, mines and other scenarios.

2.Product features of Weather Station Data Logger

1.The hidden ultrasonic probe on the roof cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Five elements integrated sensor with five elements: wind speed, wind direction, air temperature, humidity and atmospheric pressure (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.485 connection DCS transmission

3.Technical parameters of Weather Station Data Logger

1) Wind speed: 0～60m/s (±0.1m/s); (Invention patent, Patent number ZL 2021 1 0237536.5)

2) Wind direction: 0～360° (±2°); (Invention Patent, Patent No.ZL 2021 1 0237536.5)

3) Air temperature: -40℃～85℃ (±0.3℃); (Calibration certificate of Beijing Meteorological Bureau)

4) Air humidity: 0~100%RH (±2%RH); (Calibration certificate of Beijing Meteorological Bureau)

5) Atmospheric pressure: 300-1100hpa (±0.25%); (Calibration certificate of Beijing Meteorological Bureau)

6) Standalone version data storage: no less than 500,000 pieces;

7) Power consumption: 1.75W

8 Manufacturers have ISO quality management system, environmental management system and occupational health management system certification

9) The manufacturer has a computer software registration certificate

10) The manufacturer has Ex ia IIC T6 Ga high-grade explosion-proof certificate

11) The manufacturer is a 3A credit enterprise

12) Equipment through GB3836.1-2010 Explosive Environment Part 1: General Requirements for Equipment

13) Equipment through GB3836.4-2010 Explosive Environment Part 4: Protected by Intrinsically Safe "i" Equipment

4.Functional features of Weather Station Data Logger

1.Integrated structural design, easy installation and disassembly;

2.Sensor shell ASA material, corrosion-resistant and oxidation-resistant;

3.Support customization and can flexibly configure monitoring elements according to user needs;

4.PC/LED explosion-proof screen multiple monitoring modes, wired transmission

5.Five-defense design: waterproof, explosion-proof, dustproof, shockproof, and corrosion-proof;

6.Standard modbus protocol supports the docking of multiple background protocols to provide convenience to customers;

8.Low-power design, AC220V power supply;

5.Introduction to Weather Station Data Logger computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.You can set the storage time yourself.You can set the acquisition time yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

6.Weather Station Data Logger device installation

1.Confirm the on-site working conditions and set the installation plan by our company

2.Simple installation, no professional operation required, remote guidance can be installed

3.The user does not need to distribute parts by themselves.The company will carefully configure the equipment and install and use it as soon as possible when you arrive.
