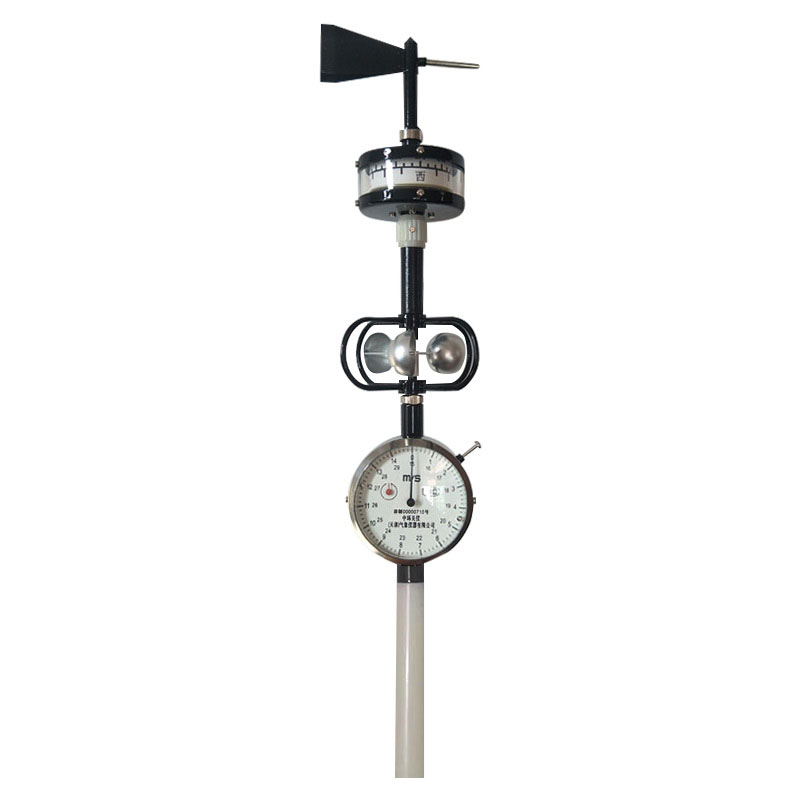

3-Cup Anemometer
Model：DEM6
Brand：tianqiong
3-Cup Anemometer has a three-cup design to accurately measure wind speed and can monitor wind speeds from 1m/s to 30m/s with a threshold of 0.8m/s.
Get a Free Quote- Product details
- Related products
- Related articles
3-Cup Anemometer has a three-cup design to accurately measure wind speed and can monitor wind speeds from 1m/s to 30m/s with a threshold of 0.8m/s.
3-Cup Anemometer Overview 3-Cup Anemometer is used to measure wind direction and average wind speed over a minute. Suitable for meteorological, hydrological, mining and field investigations. Especially suitable for measuring wind speed and wind direction in harsh environments in the wild.
Technical parameters
Wind speed: range 1m/s~30m/s (rotating cup start wind speed: <0.8m/s)
Wind direction: range 0°~360° (16 orientations)
Maximum allowable error: Wind speed error: <0.4m/s after correction, wind direction error: ±10° (not greater than one orientation when reading the orientation)
Dimensions: 360mm×70mm×75mm
Weight: 0.5kg
Address:https://tianqiongsensor.com/Wind-Speed-Sensor/3-Cup-Anemometer.html
Previous Article ：Weather Station Data Logger
Next Article：Wet Bulb Dry Bulb Thermometer
-
