Total radiation recorder

1.Total radiation recorder product introduction

Total radiation recorder is used to measure solar radiation energy and has a built-in large-capacity data storage to automatically save historical data.FT-BF1 Total radiation recorder is a high-precision automatic meteorological observation device that is highly integrated, low-power, fast installation and easy to use in field monitoring.

The equipment is debug-free and can be quickly arranged, and is suitable for the acquisition of meteorological data such as short-term emergency meteorological observations and mobile meteorological monitoring.It is widely used in the measurement of solar radiation energy in meteorological, solar energy utilization, agriculture and forestry, building material aging and atmospheric environment monitoring and other departments.

This product complies with the ISO9060 and WMO World Meteorological Organization Specification (CIMO Guide).

This product complies with the requirements of the latest Chinese meteorological standard "GB∕T 19565-2017 Total Radiation Sensor".

2.Total radiation record product features

1.Small size, movable, convenient for monitoring in different environments

2.Fully packaged, easy to install, easy to operate, single-person installation

3.GPRS networking

4.Can be connected to mobile devices, and the detection data can be viewed anytime, anywhere.

5.Support modbus485 sensor expansion

6.Built-in large-capacity lithium battery, ultra-long standby

7.Support MQTT Internet of Things protocol transmission

8.Supporting IoT data display, storage and analysis platforms

3.Total radiation record technical indicators

1.Built-in interface

modbus485 interface: GX-12-4P aerospace plug, output power supply voltage 12V

Equipment configuration interface: GX-12-4P aerospace plug, input voltage 5V

Collector power supply interface: GX-12-3P aerospace plug, input voltage 5V, with RS232 output

2.Power supply

Built-in lithium battery power supply: DC12V±0.5V peak current 10A

Lithium battery: 12000maH DC10.8-12.6V

Working duration: 24*9 hours (9 days)

Charger: 12.6V/5A

3.Parameters

Working environment: -10~+45℃, humidity ≤100% without condensation

Communication method: Support modbus485, support RS232 data output

Operating current: <170mA

External sensor protocol: modbus485

Maximum number of external sensors: 5

External sensor voltage: 12V

Data upload interval: 30s-65535s

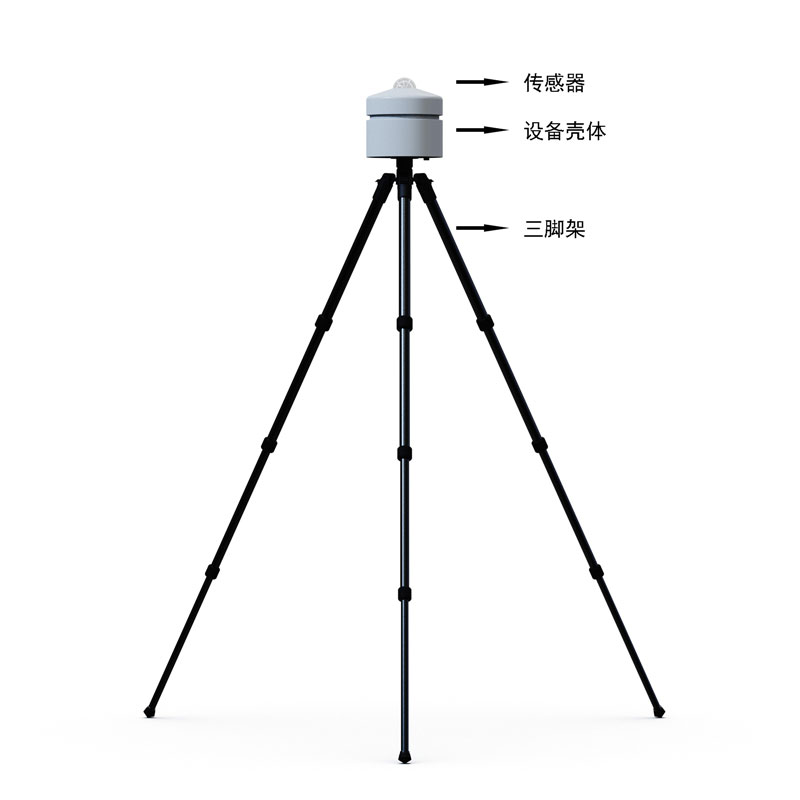

4.Total radiation record product structure diagram

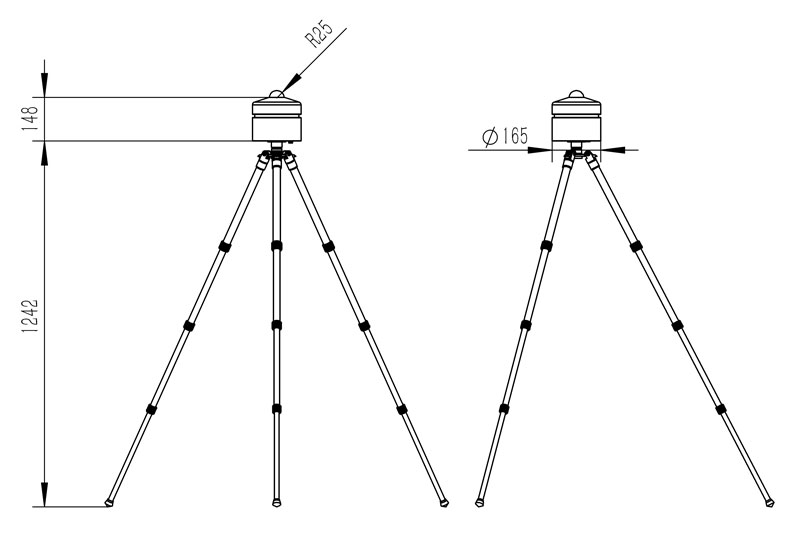

5.Total radiation recorder product size diagram

6.Introduction to Total radiation recorder computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.The storage time can be set by itself.The acquisition time can be set by itself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

7.Introduction to Total radiation recorder Android APP

1.Android stand-alone version of data reception, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software background reception and processing after the mobile phone is dormant

4.json data is automatically added to the device, modbus device supports scanning code to add the device

5.Support historical data viewing, analysis, and export tables, support curve display and single data point viewing.

6.Support data post-processing function

7.Support external running of javascript scripts

8.Introduction to Total radiation recorder cloud platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage are stable and reliable, easy to expand, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
