Tailored Monitoring: The Configurable FT-WQX Miniature Sensor Family

The FT-WQX series miniature sensors are highly integrated meteorological monitoring devices. Their unified design incorporates multiple meteorological parameter monitoring functions into a single structure, making them widely applicable in fields such as meteorological monitoring, urban environmental monitoring, wind power generation, maritime navigation, aviation airports, and bridge tunnels.

The FT-WQX series includes various models to meet the monitoring needs of different users:

FT-WQX2: Focuses on monitoring two core meteorological elements: wind speed and wind direction.

FT-WQX5: Builds upon the FT-WQX2 by adding temperature, humidity, and atmospheric pressure monitoring, forming a five-element meteorological monitoring capability.

FT-WQX6: Upgrades further to six-element monitoring, incorporating optical rainfall monitoring on the basis of the five elements.

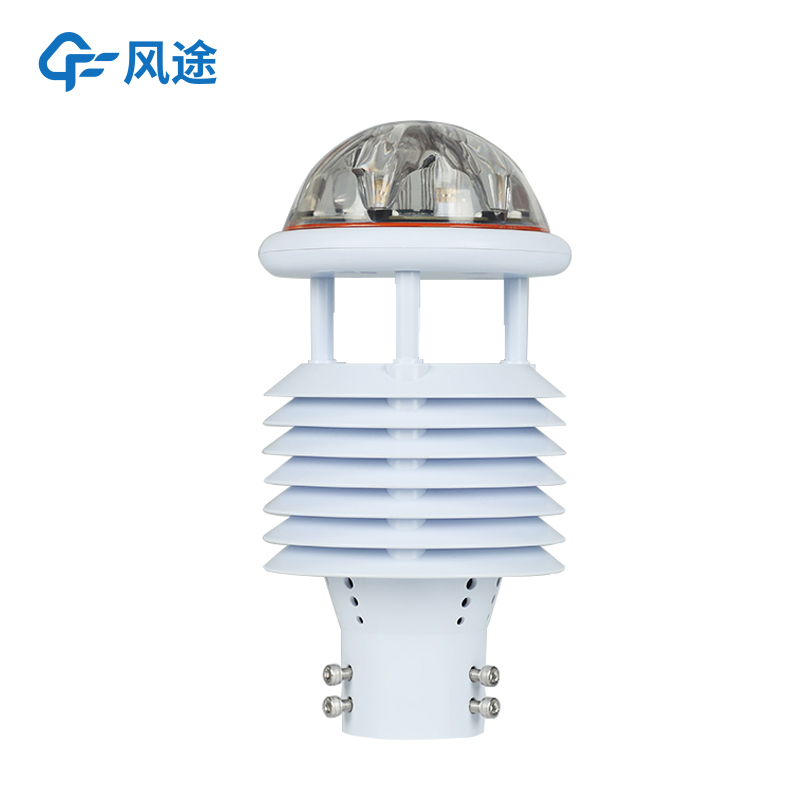

FT-WQX9: Integrates the capability to monitor nine parameters, including ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure, rainfall, photoelectric radiation, PM2.5, and PM10.

FT-WQX10/12: Offer more comprehensive functionality, capable of monitoring up to ten or twelve meteorological and environmental parameters.

The Fengtu FT-WQX series miniature sensors support multiple output signal interfaces. They come standard with an RS485 communication interface supporting the MODBUS protocol, with optional interfaces including 232, USB, and Ethernet. The devices feature flexible power supply options, supporting 12-24V DC power and solar power, meeting the power needs of various scenarios.

For installation, multiple fixing methods are provided, including sleeve fixation and flange adapter plate fixation. The unique snap-on probe design effectively resolves measurement inaccuracies caused by loosening during transport and installation.

Users can select various additional functions based on their needs: GPS device tracking enables monitoring of the equipment's location; multiple data publishing methods include PC client, mobile APP, and LED display; the wireless transmission module supports a data transmission interval as short as 1 minute.

Furthermore, the monitoring capabilities can be expanded to include AQI six parameters (carbon monoxide, nitrogen dioxide, sulfur dioxide, ozone, PM2.5, PM10) as well as environmental parameters like noise and illumination, satisfying the specialized requirements of different users.
