PV Test Equipment

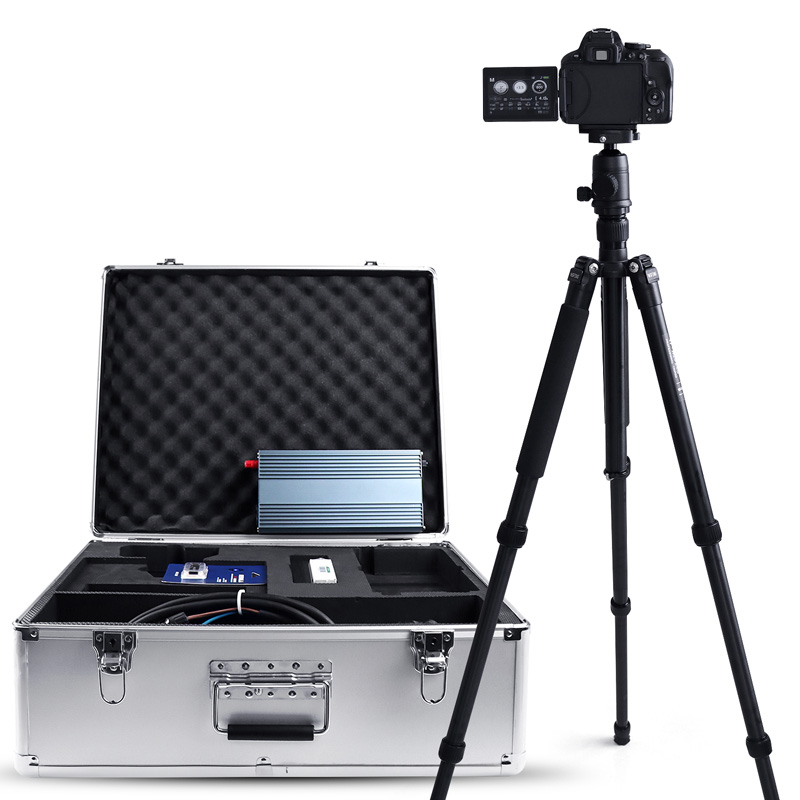

Model：FT-EL1
Brand：tianqiong
PV Test Equipment is photovoltaic solar electrical testing equipment used when installing, commissioning and testing photovoltaic panels.
Get a Free Quote- Product details
- Related products
- Related articles
PV Test Equipment Product Introduction:
PV Test Equipment is photovoltaic solar electrical testing equipment used when installing, commissioning and testing photovoltaic panels.PV Test Equipment is used in the internal defect detection of photovoltaic solar panels, which can better help users complete product quality inspection and control production and installation risks.
PV Test Equipment is equipped with a 20 million-level infrared camera, which can effectively help users complete photovoltaic panel quality inspection.The entire machine is equipped with a lighter test power supply and tripod module, making it more convenient to carry and transport, and is not affected by aviation.
PV Test Equipment application scenarios:
Suitable for photovoltaic power plant component arrival inspection, as well as component quality inspection in warehouses/laborries/factories.
PV Test Equipment can identify defect types:
| Hidden crack | Fragment | Fragments | Break the gate | Black heart | False welding |
| Process pollution | Inefficient film | Black border | sintering | Over-imposed | perforation |
Features and advantages of PV Test Equipment:
1.Convenient to carry and suitable for mobile power station testing
2.Higher accuracy and better definition
3.The image quality of 20 million-level infrared cameras is more thorough
4.Programmable constant current power supply detection is safer and more stable
5.Viewing the image of the tablet computer without camera viewing and detecting the image
6.1.5 meters light tripod moves light and simple
7.The whole machine module is as low as 5kg, and the backpack is light and portable
PV Test Equipment application fields:
| Scene | Test before installation of factory components, warehouse components, power station on-site components, |
| test | Daytime: outdoor anti-infrared dark room test; indoor sunlight environment test Night: direct tripod test, light and moonlight have no effect |
| Object | Crystal silicon components, film components (customizable) |
| quantity | Single-piece component imaging detection |
PV Test Equipment specifications:
| Module | Configuration | Specification |
| Camera module | Pixels | 20 million pixels |
| Resolution | 4928X3264 | |
| chip | 23.6x15.6mm, CMOS sensor | |
| Accuracy | 1.5mm/pixel | |
| Light shielding | Lights, moonlight, starlight, light indoor sunlight | |
| Test area | 3000mm*2000mm | |
| Lens | 18-55mm | |
| Focus Mode | Fully automatic focus | |
| Battery | 700mah | |
| Memory card | 32GB, Wi-Fi wireless | |
| Data line | 10cm | |
| Power supply module | Output current | 0~5A adjustable |
| Current Accuracy | 0.1A | |
| Output voltage | 0~60V adjustable | |
| Voltage Accuracy | 0.1V | |
| control Panel | LED digital display program control panel | |
| Functional settings | Power-on parameters are preset to save; output one-click power-on | |
| Circuit protection | Short circuit protection, circuit breaker protection, current backflow protection, overheating protection, electrostatic protection, current and voltage adaptive matching photovoltaic panels | |
| Power on | 10cm AC three-hole input line | |
| DC line | 3m DC output line, MC4 port docking component | |
| software | Picture Transmission APP | Check pictures and download |
| Bracket system | Test bracket | 1.5m aluminum alloy bracket |
| Testing gimbal | Stand integrated installation, 360 degree rotation | |
| Usage environment | Desert, plateau, roof, hills, hillsides, factories, roofs, snow, greenhouses, agricultural light complementary, fish light complementary, scenery complementary, and other environments | |
| Quality assurance after-sales service | 1-year warranty, 24H response, 72H fault solution, spare parts coordination | |
PV Test Equipment configuration list:
| Serial number | name | EL1 specifications | quantity | unit |
| 1 | EL Camera | 20 million pixels | 1 | tower |
| 2 | EL infrared lens | 18-55mm | 1 | tower |
| 4 | Diagram transmission module | Wi-Fi memory card | 1 | set |
| 5 | Data cable/charger | standard | 1 | set |
| 6 | Camera battery | standard | 2 | piece |
| 7 | Test bracket | 1.5 meters | 1 | set |
| 8 | DC voltage-regulated power supply | 0~60V, 0~5A output; AC220 power supply input | 1 | tower |
| 9 | Power on | 3 meters | 1 | root |
| 10 | Equipment three-proof box | standard | 1 | set |
| 11 | EL Picture Transmission APP | Wireless view of camera detection images | 1 | set |
| * | Applicable scenarios | Component testing before installation of photovoltaic power stations; warehouse component testing; | ||
| * | other | Fully automatic focus of the equipment; can be carried in air |
