Photovoltaic Tester

Model：FT-EL2

Brand：tianqiong

Photovoltaic Tester verifies the safety and efficiency of photovoltaic installations and is used for solar photovoltaic panel data and troubleshooting.

Get a Free Quote

Product details
Related products
Related articles

Photovoltaic Tester Product Introduction:

Photovoltaic Tester verifies the safety and efficiency of photovoltaic installations and is used for solar photovoltaic panel data and troubleshooting.

Photovoltaic Tester is used in the internal defect detection of photovoltaic solar panels, which can better help users complete product quality inspection and control production and installation risks.

Photovoltaic Tester is equipped with a 24 million-level infrared camera, which can effectively help users discover the quality problems of the DC internal of the photovoltaic panel.The equipment is equipped with energy storage power supply and Wi-Fi wireless control module, making on-site inspection and use more convenient and fast.

Photovoltaic Tester application scenario:

Suitable for photovoltaic power plant components arrival inspection and on-stent assembly testing after installation, as well as component quality inspection in warehouses/laborries/factories.

Photovoltaic Tester can identify defect types:

Hidden crack	Fragment	Fragments	Break the gate	Black heart	False welding
Process pollution	Inefficient film	Black border	sintering	Over-imposed	perforation

Photovoltaic Tester product features and advantages:

1.24 million high-definition infrared camera and EL image quality clearer

2.The full-time automatic focus module has higher imaging accuracy

3.Wireless control device detection, fast imaging

4.Programmable constant current power supply field detection achieves 24-hour uninterrupted testing

5.Tablet computer wireless detection image transmission without camera viewing

6.On-site inspection of energy storage power can be tested without any preparation

7.Multi-angle testing of components on 2-meter carbon fiber tripod bracket is more convenient

8.Wireless remote operation test of the whole machine, and the entire project can be completed by one person

9.Three-proof trolley case carrying and transporting light and safe

Photovoltaic Tester application fields:

Scene	Factory components, warehouse components, power station site components testing,
test	Daytime: outdoor anti-infrared dark room test; indoor sunlight environment test Night: direct tripod test, light and moonlight have no effect
Object	Crystal silicon components, film components (customizable)
quantity	Single-piece component imaging detection

Photovoltaic Tester specifications:

Module	Configuration	Specification
Camera module	Pixels	24.16 megapixels
	Resolution	6000x4000
	chip	23.5x15.6mm, CMOS sensor
	Infrared chip	Lailx9s Germanium chip 99.8% infrared refractive index
	Accuracy	1.0mm/pixel
	Detection speed	Adjustable 1~30s
	Weak current test	Can present clear hidden cracking imaging at 5A weak current
	Light shielding	Lights, moonlight, starlight, indoor light, sunlight below 100 irradiance has no effect on the test
	Test area	4000mm*2000mm
	Lens	18mm wide-angle infrared lens
	Focus Mode	Full time autofocus
	Battery	980mah
	Memory card	32GB
	Data line	10cm
Power supply module	capacity	10AH
	Battery	High-performance lithium-ion battery
	Output current	8A
	Current Accuracy	0.1A
	Output voltage	70V
	Voltage Accuracy	0.1V
	Load power	100W~600W; upper limit is not higher than 700W
	Number of tests	300~500 photovoltaic panels
	control Panel	LED digital display program control panel
	Functional settings	Wireless remote control power off
	Power saving mode	Automatic power off after 10 seconds of power on
	Steady-state module	The output current and voltage of the constant power supply are not subject to change in power magnitude
	Circuit protection	Short circuit protection, circuit breaker protection, current backflow protection, overheating protection, electrostatic protection, current and voltage adaptive matching photovoltaic panels
	Power on	10cm AC three-hole input line
	DC line	5m DC output line, MC4 port docking component
computer	Tablet PC	Huawei tablet 32G
Wi-Fi	2.4G	Built-in 2.4GWi-Fi wireless control module
software	Detection APP	Wireless control camera detection and photography, image transmission and imaging, dynamic video framing positioning, historical picture viewing, image download, etc.
PC	Computer software	Automatic detection of detection, defect classification recognition and saving, folder date pipeline, statistics, gain, screenshot, camera parameter adjustment, professional management desktop software
Bracket system	Test bracket	1.5m aluminum alloy bracket
Bracket system	Testing gimbal	Stand integrated installation, 360 degree rotation
Positioning module	Detection and positioning	Cross laser positioning instrument, which quickly locates the rear component position on the bracket, can improve detection efficiency several times
Usage environment	Desert, plateau, roof, hills, hillsides, factories, roofs, snow, greenhouses, agricultural light complementary, fish light complementary, scenery complementary, and other environments
Quality assurance after-sales service	1-year warranty, 24H response, 72H fault solution, spare parts coordination

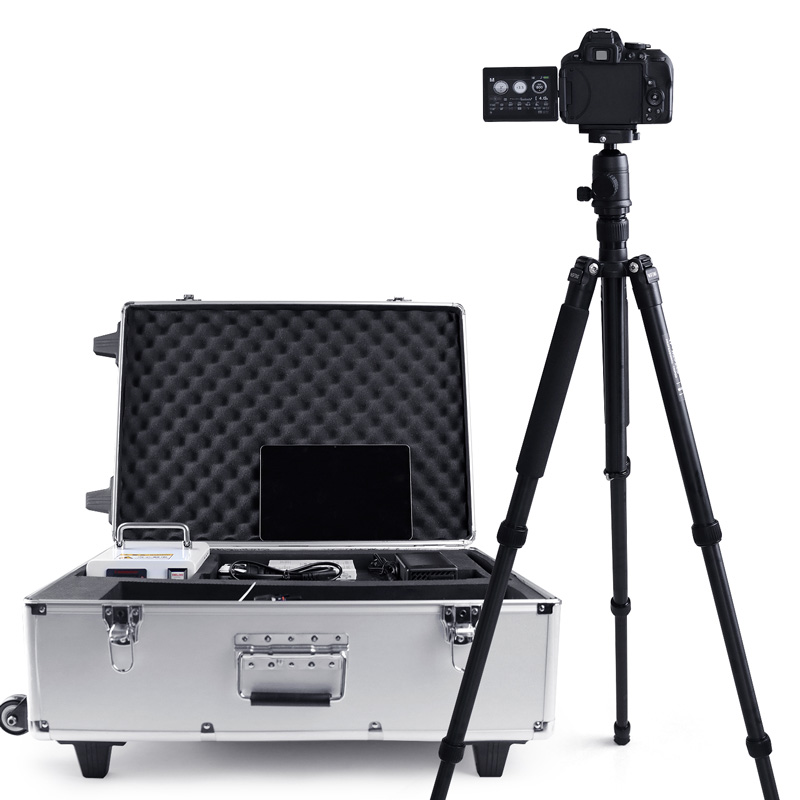

Photovoltaic Tester configuration list:

Serial number	name	Specification	quantity	unit
1	EL Camera	24 million infrared camera, fully automatic focus	1	tower
2	EL infrared lens	18mm wide-angle infrared lens; accuracy 0.8mm	1	tower
3	Tablet PC	Huawei Honor 32G	1	tower
4	Wi-Fi transmission module	Built-in 2.4G Wi-Fi module	1	set
5	Data cable/charger	standard	1	set
6	Camera battery	standard	2	set
7	Test bracket	2m carbon fiber tripod	1	set
9	Testing gimbal	720 gimbal	1	tower
10	EL-DC mobile power supply	10AH energy storage, 70V, 700W, constant current and constant voltage output, wireless control of remote control, 300~500 components, 10S automatic power outage	1	tower
11	Power on	5 meters	1	root
12	Detection positioning device	Cross laser positioning, fast positioning and detecting component position	1	set
13	Equipment trolley box	Special three-proof instrument trolley case;	1	set
14	EL-APP detection software	Wireless operation camera detection, live viewing, picture transmission viewing, picture download, historical picture viewing	1	set
15	Windows Software	Automatic detection of detection, defect classification recognition and saving, folder date pipeline, statistics, gain, screenshot, camera parameter adjustment, professional management desktop software	1	set
*	Applicable scenarios	Test before installation of photovoltaic power station; test of components on brackets
*	other	Standard application equipment, mainstream products in the market.
