Spectrometer

1.Spectrometer product overview:

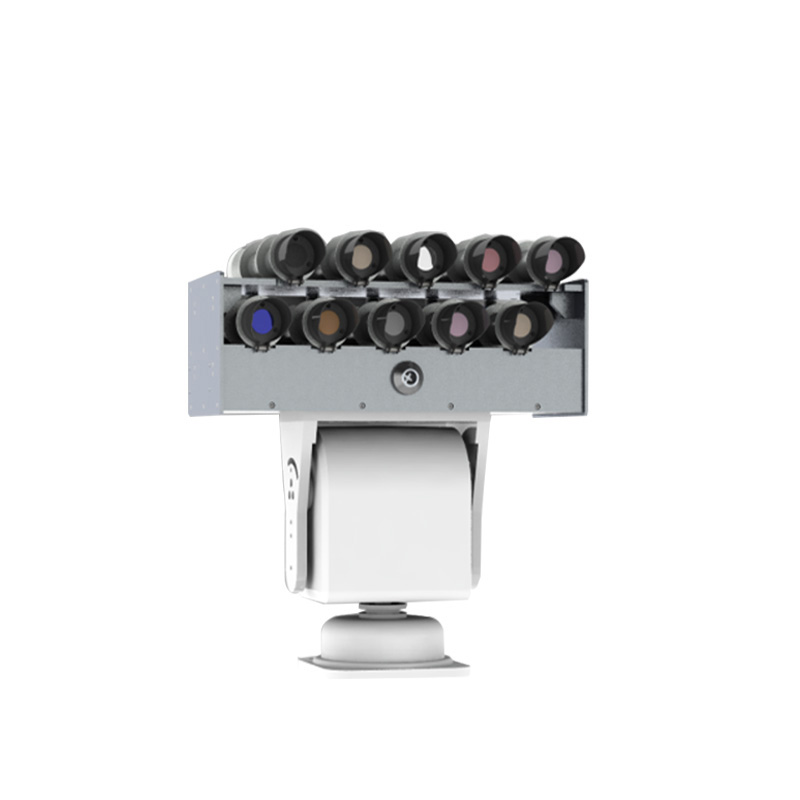

Spectrometer can observe direct radiation data in 10 bands, providing the ability to quickly and easily measure light intensity across the entire solar spectrum.Spectrometer is an intelligent solar spectrometer that can accurately measure the radiation energy in different spectral intervals of the sun.This instrument uses a combination of multispectral filters and thermopile to measure the irradiance of each band of different wavelengths.At the same time, the instrument can also measure a variety of data such as total radiation, scattered radiation, etc., and is an ideal spectral radiation monitoring instrument suitable for long-term assessment of solar spectral energy, solar energy resources and meteorological conditions in the field.

2.Spectrometer product features:

1.Radiation data monitoring: The direct radiation data in 10 bands can be observed, and the radiation data for various purposes such as total solar radiation, scattered radiation, reflected radiation, ultraviolet radiation, photosynthetic radiation, net total radiation, etc.can also be monitored.

2.Technology-based acquisition instrument: The spectral radiation data acquisition instrument adopts a new generation of 32-bit MCU processor, and integrates high-precision GPS, GPRS, and Bluetooth digital chips on-board, which can accurately correct the acquisition time and perform high-precision positioning.

3.Wireless data storage: a leading wireless data storage technology.The stored data in the photovoltaic data collector can be wirelessly sent to mobile phones and PDAs for storage and analysis.

4.Smart data operation and maintenance: Adopt advanced cloud data analysis technology, and perform operation and maintenance-level data monitoring and data early warning analysis through GPRS and Bluetooth.It is convenient for on-site personnel to conduct equipment operation and maintenance failure analysis without leaving home.

5.Self-calibration sensitivity: The accuracy of radiation data has a guiding and analytical effect on the power generation of photovoltaic power stations.The accuracy of solar radiation sensors needs to be calibrated and corrected at least two years in accordance with the requirements of the National Meteorological Metering Station on the "JJG 458-1996 Total Radiation Table".The solar power generation environment monitor can realize automatic calibration and correction of on-site radiation data to ensure the accuracy of radiation data observation.

6.Global tracker: We have equipped direct radiation sensors and scattered radiation sensors with global adaptive fully automatic solar trackers.This tracker can be used normally worldwide at a global scale of less than 60° south latitude and less than 60° north latitude, with a temperature range of -40~60° ℃

7.Green power management: This data collector can use two power supply modes: AC220V and DC12V.It also integrates a new generation of green power management modules to achieve intelligent switching between AC and DC power supply.

8.Integrated observation bracket: The integrated observation bracket is re-optimized to facilitate the on-site personnel to install and debug the equipment quickly, conveniently and simply.

3.Spectrometer technical indicators:
