Emergency rescue life detector

1.Overall requirements for Emergency rescue life detector

Emergency rescue life detector is an effective seismic/acoustic listening device that accurately locates one's position in the rubble after disasters such as earthquakes.Emergency rescue life detector is able to search for victims under collapsed buildings and in narrow spaces.It provides victim information under the ruins to search and rescue personnel through high-definition video and audio signals.*

2.Emergency rescue life detector technical requirements

1.Main functions: Emergency rescue life detector is a special tool for searching for victims under collapsed buildings and in narrow spaces.High-definition video and audio signals can be used to provide search and rescue personnel with information on victims under the ruins.

2.Extra large 10-inch full-color main screen, size ≤300*190*20mm high-precision screen can be enlarged at least 8 times; it is also equipped with a sun visor, which is easy to view under strong sunlight, the weight of the host is ≤1kg (including battery, not connected cable), and can be operated with one hand; the menu key is easy to recognize and easy to operate; ▲

3.Display tablet monitoring host function: able to record and take photos, 8x digital enlargement and reduction function, file is stored on the SD card, memory ≥256G; mirror setting function can flip the photos up, down, left and right 360°; positioning marking function, input position marking and other information to the photos through the display screen, convenient browsing, search and management

4.Rechargeable battery: working time ≥8h.

5.Electric audio and video camera: diameter ≤40MM, ≥1080P full HD electric rotating probe.The high-definition video probe can rotate uninterruptedly at 360° and flip 270°.It has two-way voice intercom, and has built-in white lights ≥12.▲

6.Waterproof video camera: diameter ≤35mm, equipped with 12 fill lights, protection level IP68, the camera probe can be detected by connecting the carbon fiber telescopic rod through an infinite adjustment direction hose, or it can be detected by the equipped underwater extension cable.

7.Infrared thermal imaging camera: built-in white LED lights ≥8, resolution 384x288, wavelength range 8-14um.▲

8.Waterproof video camera: image resolution 4000*3000, waterproof level IP68.▲

9.It must be equipped with an independent sound pickup module (for flexible use with video probes, etc.at the rescue site, and can be used in two-way intercom; noise-cancelling headphones (with microphone) to facilitate clear calls with survivors.

10.Equipped with carbon fiber telescopic rods at least 5m long, which can telescopic between 1.25m-5m.It is equipped with many 20-meter waterproof connection cables.

11.Protection level of the entire set of equipment IP66.

12.Working temperature: -20℃ to +60℃; 2H

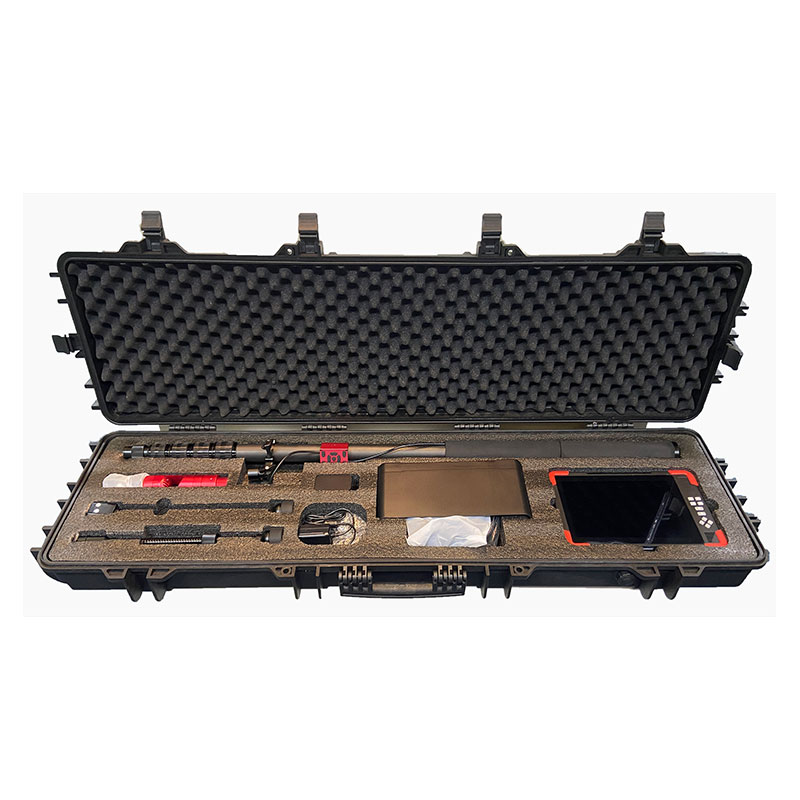

13.The full set of configurations includes: 1 protective safety box, 1 rotating color audio and video probe, 1 infrared thermal imaging probe, 1 waterproof video probe, 1 5-meter carbon fiber telescopic rod, 1 10-inch color monitor, 20-meter connecting cable, and 1 set of intercom headphones and microphones.Other requirements for Chinese instruction manual

3.Emergency rescue life detector other requirements

1.Provide a national-level testing report or a third-party testing report (the test report has CMA or CNAS mark) during bidding, and the testing report reflects the above technical indicators with "▲".
