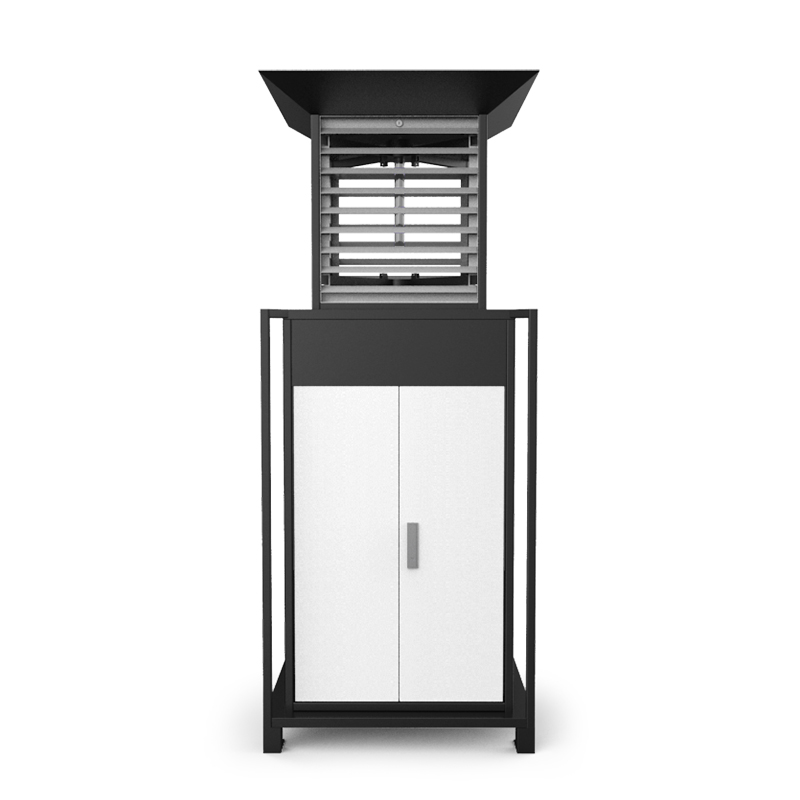

Wheat aphid monitor

1.Product description of Wheat aphid monitor

Wheat aphid monitor helps growers make decisions around aphid management and when to take action to prevent damage to their crops.Aphids can harm wheat leaves, stems, and ears, affect wheat photosynthesis, nutrient absorption and conduction, causing a decrease in weight of 1,000 grains, resulting in a reduction in yield.Wheat aphid monitor is developed based on the principle that aphids are sensitive to specific colors.The equipment integrates automatic adjustment of the height of the color plate, automatic rotation, automatic photography, and automatic uploading of data.At the same time, it also conducts integrated monitoring of meteorological data to study the relationship between aphid outbreak and meteorological conditions.

2.Performance characteristics of Wheat aphid monitor

1.Adopt optical, electrical and CNC technologies for automatic control.

2.Color 7-inch Chinese LCD capacitor touch screen operation; it can be set and controlled in time periods, automatic and manual photography can be taken; Android system intelligently controls, and displays ambient temperature, humidity and time.

3.Configure a 1200W pixel image acquisition device, which can capture insect situations on the color plate in real time through the camera, and the clarity of the captured image can meet the requirements of artificially identifying insect species.

4.Equipped with a lifting device that can automatically or manually lift the insect-attracting height of the color plate.

5.Various parameters of the instrument can be configured remotely through the server for easy maintenance and management.

6.Built-in GPS or Beidou positioning function, you can view device site and other data in the map.

7.Power supply method: solar power supply, solar energy is used in combination with batteries (DC type).

8.Equipped with a variety of environmental sensors such as wind speed, wind direction, air temperature, air humidity, and rainfall.

9.Network mode: Various networking methods: 4G\WIFI\Wired can be selected at will, and can be managed online anytime, anywhere.

10.You can view device data through PC, APP, WeChat and other methods.

3.Technical parameters of Wheat aphid monitor

1.Power supply: Solar panel power: 60W, battery specification: 12V 24AH

2.Power consumption: ≤50W

3.Insect attracting device: Swatch plate

4.Insulation resistance: ≥2.5 MΩ
