Weather Sensors for Drones
Model：FT-F2
Brand：tianqiong
Weather Sensors for Drones are lightweight, rugged and highly accurate，can be mounted on drones to collect data about local weather conditions.
Get a Free Quote- Product details
- Related products
- Related articles

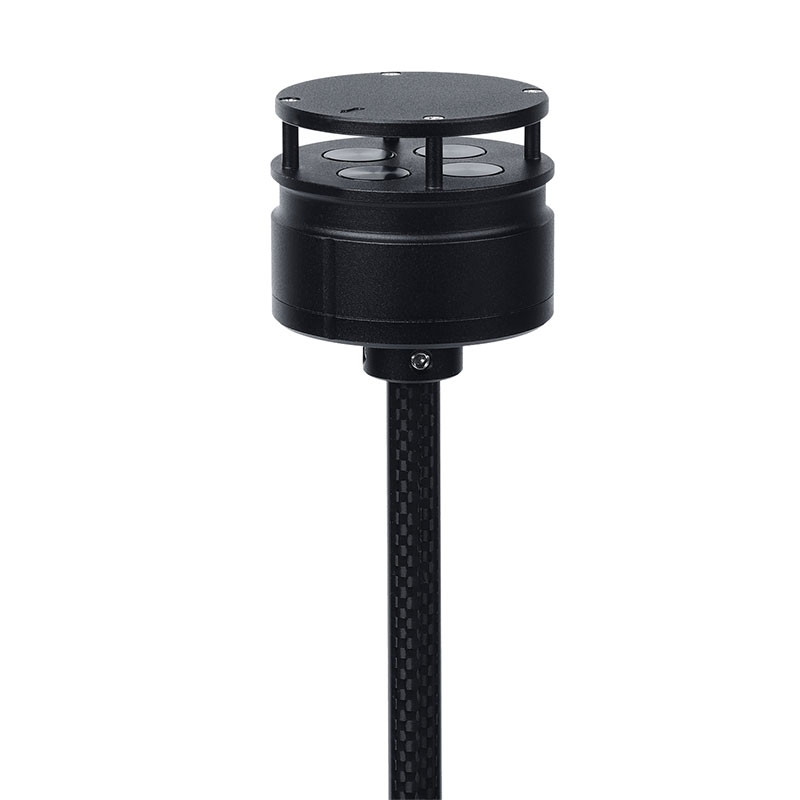

1.Product Introduction to Weather Sensors for Drones
Weather Sensors for Drones are lightweight, rugged and highly accurate，can be mounted on drones to collect data about local weather conditions.The F2 Weather Sensors for Drones is a weathermeter that utilizes the principle of ultrasonic resonance.It is specially designed to be installed on small aircraft and on unmanned platforms to monitor wind speed, wind direction, temperature, humidity and atmospheric pressure values in low-altitude areas.
The weight of F2 is 56g and a diameter of 50mm.It is currently a lighter and smaller ultrasonic meteoroscope on the market.It has a compact and solid appearance, and has extremely strong anti-electromagnetic interference, waterproof and dustproof functions.It can work normally at an altitude of 4,000 meters and the external environment between -40℃ and +70℃.
It uses low-power chips internally, and can measure wind up to 60m/s, especially for unmanned aircraft and related flight control platforms, as well as environmental monitoring systems using aircraft.
F2 has two installation methods, which can be mounted on the top of the aircraft and can be mounted upside down on the bottom of the aircraft.
2.Weather Sensors for Drones technical parameters
| name | Measurement range | Accuracy | Resolution |
| Wind speed | 0-60m/s | ±3% | 0.1m/s |
| wind direction | 0-359° | ±3° | 1° |
| temperature | -40-+80℃ | ±1℃ | 0.1℃ |
| humidity | 0-100% | ±5% | 1 |
| Air pressure | 300-1100hpa | ±1 | 0.1hpa |
| Instrument diameter | 50mm | ||
| Instrument height | 50mm | ||
| Instrument weight | 56g | ||
| Digital output | RS485 | ||
| Baud rate | 4800-19200 | ||
| Communication protocol | ModBus, ASCII | ||
| Operating temperature/humidity | -40℃-+70℃; 0-100% | ||
| Working Altitude | 0-4000 meters | ||
| Power requirements | VDC: 5-24V; 28mA | ||
| Installation method | Top column installation or bottom lifting of aircraft | ||
| Material/Color | ABS/Black | ||
