Integrated Weather Station

1.Introduction to Integrated Weather Station

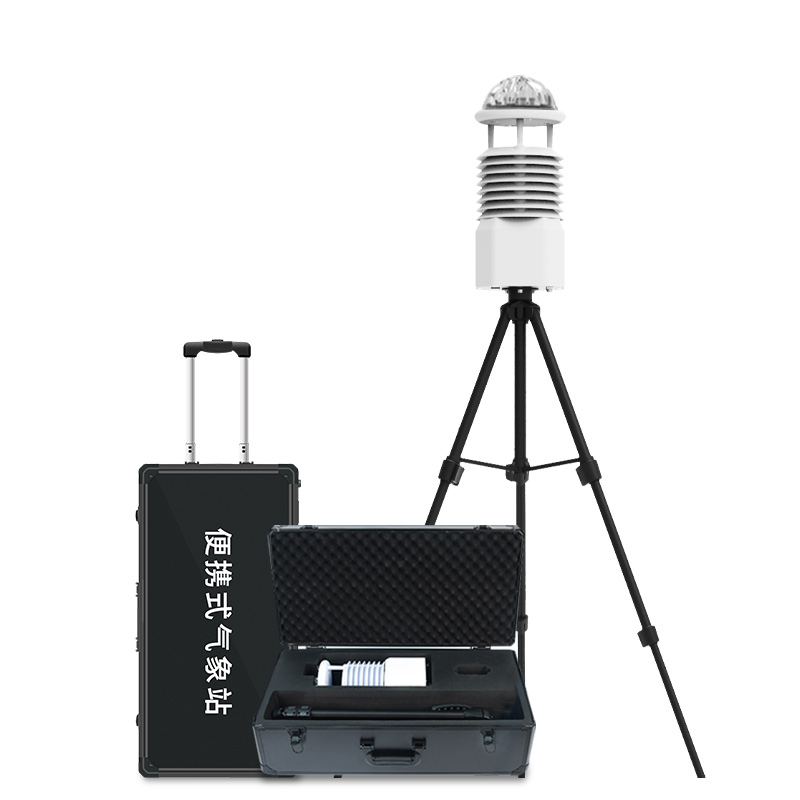

Integrated Weather Station is a small outdoor portable weather station that provides accurate data on important weather parameters.BQX10 Integrated Weather Station is a highly integrated, low-power, fast installation and easy for field monitoring.

The device supports wired, Bluetooth, GPRS and other transmission methods, is debug-free and can be quickly arranged.It is suitable for the acquisition of meteorological data such as short-term emergency meteorological observations and mobile meteorological monitoring.Widely used in meteorological, agriculture and forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields

The device adopts a ten-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, light, optical rainfall, pm2.5, pm10, noise, etc.The sensor shell is made of imported Stainless steel material, which is more effective in resisting salt spray and other environments, and has a protection level of more than IP65.

2.Product features of Integrated Weather Station

1.The hidden ultrasonic probe on the roof cover can avoid interference from rain and snow accumulation, and avoid natural wind shading☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase☆

3.Temperature, humidity, wind speed, wind direction, atmospheric pressure, optical rainfall, light, pm2.5, pm10, noise ten elements integrated sensor☆

4.Standard configuration: GPRS, Bluetooth, 485 to USB

5.Aluminum alloy bracket, retractable

6.Shock-absorbing protective trolley case, easy to carry

3.Technical parameters of Integrated Weather Station

1.Wind speed: measurement principle: ultrasonic wave, range: 0～60m/s, accuracy: 0.1m/s+0.01v, resolution: 0.1m/s;

2.Wind direction: measurement principle: ultrasonic wave, range: 0~360°, accuracy: ±2°, resolution: 1°;

3.Air temperature: measurement principle diode junction voltage method, range: -40-80℃, accuracy: ±0.3℃ (25℃), resolution: 0.01℃;

4.Air humidity: measurement principle capacitive type, range: 0-100%RH, accuracy: ±3%RH (20%~80%), resolution: 0.01%RH;

5.Atmospheric pressure: measurement principle piezoresistive type, range: 300-1100hpa, accuracy: ±0.25%, resolution: 0.1hpa;

6.PM2.5: Range: 0-1000ug/m3, accuracy: ±10% (＜500 micrograms), resolution: 1ug/m3;

7.PM10: Range: 0-1000ug/m3, accuracy: ±10% (＜500 micrograms), resolution: 1ug/m3;

8.Noise: measurement principle capacitive type, range: 30-120dB, accuracy: ±1.5dB, resolution: 0.1dB;

9.Lighting: measurement principle photoelectric effect, range: 0-157286LUX, accuracy: <±3%, resolution: 1LUX;

10.Optical rainfall: measurement principle photoelectric type, range: 0-4mm/min, accuracy: ≤±4%, resolution: 0.01mm

11.Data storage: no less than 500,000 pieces;

12.Power consumption: 1.5W

13.Lithium battery: capacity 12000maH, battery life ≥50h, battery capacity display function

14.Total weight of the equipment: ≤5kg;

15.Layout time: 1 person, no more than 2 minutes to complete the layout;

16.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

17.The manufacturer has a computer software registration certificate

18.The manufacturer is a 3A-level credit enterprise

4.Introduction to the Integrated Weather Station computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.The storage time can be set by itself.The acquisition time can be set by itself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

5.Introduction to the Integrated Weather Station Android APP

1.Android stand-alone version of data reception, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software background reception and processing after the mobile phone is dormant

4.Json data is automatically added to the device, modbus device supports scanning code to add the device

5.Support historical data viewing, analysis, and export tables, support curve display and single data point viewing

6.Support data post-processing function

7.Support external running of javascript scripts

6.Introduction to the Integrated Weather Station Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage, stable and reliable, easy to expand, and load balanced

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information

7.Support data curve analysis

8.Support data export table form

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
