Integrated Weather Observation System

1.Introduction to Integrated Weather Observation System

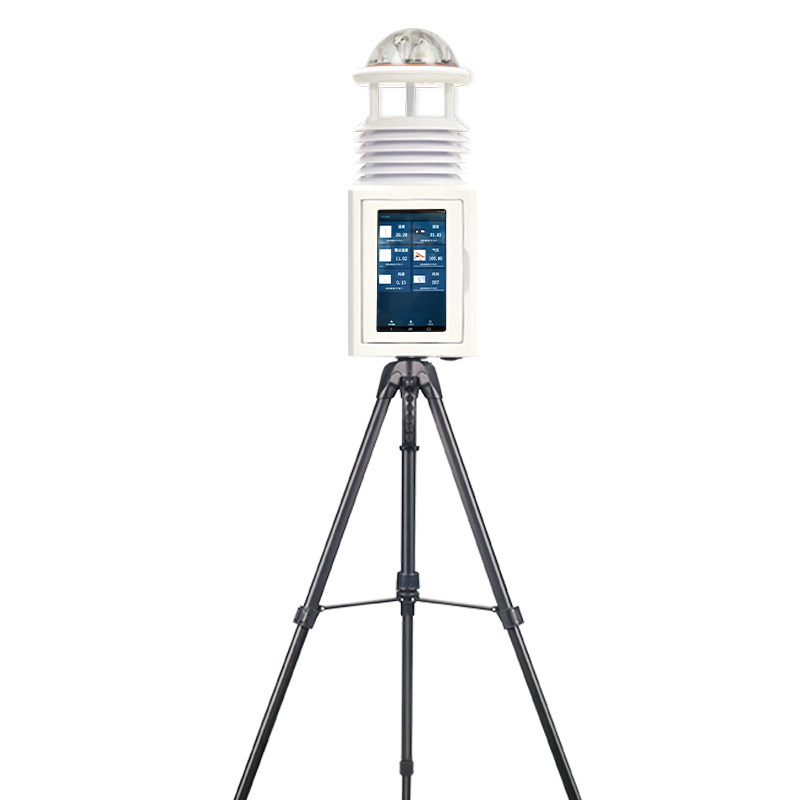

Integrated Weather Observation System is a rugged, wireless, compact and fully modular weather observation system that can be customized to suit your needs.PQX7 Integrated Weather Observation System is a highly integrated, low-power, fast installation and easy for field monitoring.

The device supports wireless transmission, no debugging, and can be quickly arranged.It is suitable for the acquisition of various types of emergency meteorological data such as short-term observation of emergency meteorological conditions, mobile meteorological monitoring and other meteorological data.Widely used in meteorological, agriculture and forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields

The device adopts a seven-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, optical rainfall, etc.The sensor shell is made of imported Stainless steel material, which is more effective in resisting salt spray and other environments, and has a protection level of more than IP65.

2.Product features of Integrated Weather Observation System

1.The hidden ultrasonic probe on the roof cover can avoid interference from rain and snow accumulation, and avoid natural wind shading☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase☆

3.Integrated sensor of seven elements, wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, and optical rainfall☆

4.Lithium battery power supply, power display function

5.Shock-absorbing protective trolley case, easy to carry

6.Aluminum alloy bracket, retractable

7.Android 7-inch touch screen

3.Technical parameters of Integrated Weather Observation System

1.Wind speed: 0～60m/s (±0.1m/s+0.01V);

2.Wind direction: 0～360° (±2°);

3.Air temperature: -40-80℃ (±0.3℃ (25℃));

4.Air humidity: 0-100%RH (±3%RH (20%~80%));

5.Atmospheric pressure: 300-1100hpa (±0.25%);

6.Light: 0-157286LUX (＜±3%)

7.Optical rainfall: 0-4mm/min (≤±4%)

8.Data storage: no less than 500,000 pieces;

9.Power consumption: 1.75W

10.Lithium battery: capacity 12000maH, battery life ≥32h

11.Total weight of the equipment: ≤5kg;

12.Layout time: 1 person, no more than 2 minutes to complete the layout;

13.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

14.The manufacturer has a computer software registration certificate

15.The manufacturer is a 3A credit enterprise

4.Introduction to the Integrated Weather Observation System Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage, stable and reliable, easy to expand, and load balanced

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
