pigeon dna test

pigeon dna test provides pigeon DNA typing or analysis, including pigeon gender, homing ability DRD4, endurance LDHA, navigation ability and circadian rhythm CRY1 analysis and identification.For a long time, having excellent bloodline has been considered an important factor affecting competition performance. The so-called excellent bloodline refers to a specific genotype that can be inherited. Given that some genes of racing pigeons have an important impact on athletic ability, through reference to authoritative literature and European testing experience, combined with existing innovative technologies, we have discovered homing ability (DRD4) indicators, endurance (LDHA) indicators, and cryptochrome (CRY1) indicators, and have important reference roles in the flying ability and breeding ability of racing pigeons. Through the detection of the above indicators, a more scientific reference basis is given in the process of pigeon fans choosing racing pigeons and breeding pigeons.

Our company combined with the above genetic research, the pigeon DNA test can simultaneously identify genotyping and identification that affects flight ability, including pigeon male and female gender identification, homing ability DRD4, endurance LDHA, navigation ability and circadian rhythm CRY1.

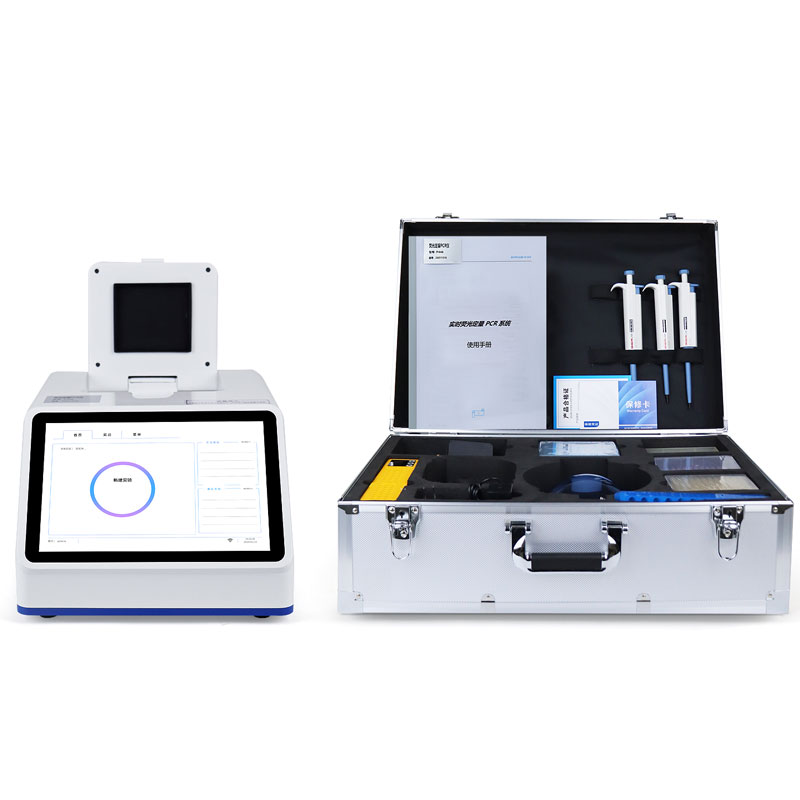

Pigeon DNA test instrument basic structure

The real-time fluorescence quantitative PCR system is an instrument for real-time detection of reactions, mainly composed of a gene amplification thermal circulation system, a fluorescence real-time detection system, a microcircuit control system, a computer and application software. Two of the core functional modules are: the thermal circulation system and the fluorescence real-time detection system. Among them, the working principle of the gene amplification thermal cycle system is basically the same as that of the traditional gene amplification instrument, and the thermal cycle process is completed by semiconductor heating and refrigeration. The fluorescence detection system mainly consists of fluorescence excitation components, optical signal transmission components, fluorescence detection components, and control systems.

Pigeon DNA test instrument features:

1. Small size, light weight, easy to carry, compatible with 0.2 PCR single tube and eight-link tube;

2. Adopt American MARLOW customized Paltier module high-level semiconductor chip, a new generation of semiconductor cooling technology, the fastest temperature change rate can reach 7 degrees per second, and the service life can reach one million cycles;

3. Use unique lighting detection and processing technology to automatically adjust the fluorescence background, improve the sensitivity and signal-to-noise ratio of the fluorescence signal to obtain better results;

4. 13S four channels have fast lighting, stable fluorescence acquisition signal, reducing delay error;

5. Use maintenance-free long-life LED light source without replacement, independent fluorescence channels, and the crosstalk between different channels is smaller;

6. Constant current control circuit, smooth power output, extend Peltier life, and improve temperature control accuracy;

7. It has protection functions such as overcurrent and overtemperature;

8. Powerful software analysis functions, which can perform quantitative analysis, melting curve analysis, genotyping, etc. The analysis software is upgraded for free for life and supports software customization in different industries;

9. It comes with 10-inch color touch screen control.

pigeon dna test technical parameters:

Dimensions: 235mm*385mm*175mm (width*deep*height)

Weight: 5.8Kg

Electrical parameters: ~220V/50Hz, 255W

Data interface: USB 2.0*2

Operating conditions: Temperature: 10-30℃, humidity: 20%~80%

Transportation and storage conditions: Temperature: -20~55℃, humidity: 20%~80%

Altitude: <2500 meters

Noise level: A weighted, <60dB

Sample capacity: 32*0.2mL

Test tube type: 0.2 PCR single tube, eight-terminal tube

Sample volume: 15-100uL

Heating/cooling method: semiconductor heating/cooling

Temperature range: 4℃-99℃

Maximum temperature rise rate: ≤5.5℃/s (MAX)

Average heating rate: ≥3.5℃/s

Maximum cooling rate: ≤4.5℃/s (MAX)

Average cooling rate: ≥2.5℃/s

Temperature control accuracy: ≤±0.01℃

Temperature accuracy: ≤±0.1℃

Temperature uniformity: ≤±0.3℃

Number of fluorescence detection channels: 4 channels

Light emitting device: High brightness LED

Lighting devices: high sensitivity, high signal-to-noise ratio photodiode

Adaptation probe or dye: First channel: 470/520 FAM, SYBR Green

Second channel: 530/570 HEX, JOE, VIC

Third channel: 580/610 ROX, CY3.5, Texas-Red

Channel 4: 630/670 CY5

Detection sensitivity: 1 copy

Linear detection range: 100~1010 copies

Linear correlation coefficient: ≥0.999

Channel crosstalk: No crosstalk

Test repetition: ≤1.0%
