rainfall measuring equipment
Model：YL1
Brand：tianqiong
Rainfall measuring equipment can measure rainfall by recording the amount of precipitation collected and is ideal for gardening, flood prevention and leak detection.
Get a Free Quote- Product details
- Related products
- Related articles
1.Rainfall measuring equipment technical indicators
Rainfall measuring equipment can measure rainfall by recording the amount of precipitation collected and is ideal for gardening, flood prevention and leak detection.
1.Power supply: DC12V
2.Power consumption: 0.02W
3.Working environment: 0~50℃
4.Communication interface: RS485
5.Operating current: 2mA DC12V
6.Minimum data interval: 0.5S
2.Rainfall measuring equipment parameters
| Rain gauge diameter | Φ200mm |
| Operating temperature | 0～50℃ |
| Working humidity | <95% (no condensation) |
| error | ≤±2% |
| Resolution | 0.2mm |
| Rainy range | 0mm～4mm/min, maximum rainfall intensity allowed 8mm/min |
| Heavy rainy range | 0～10mm/min, maximum rainfall intensity allowed 15mm/min |
| Output method | Modbus485 |

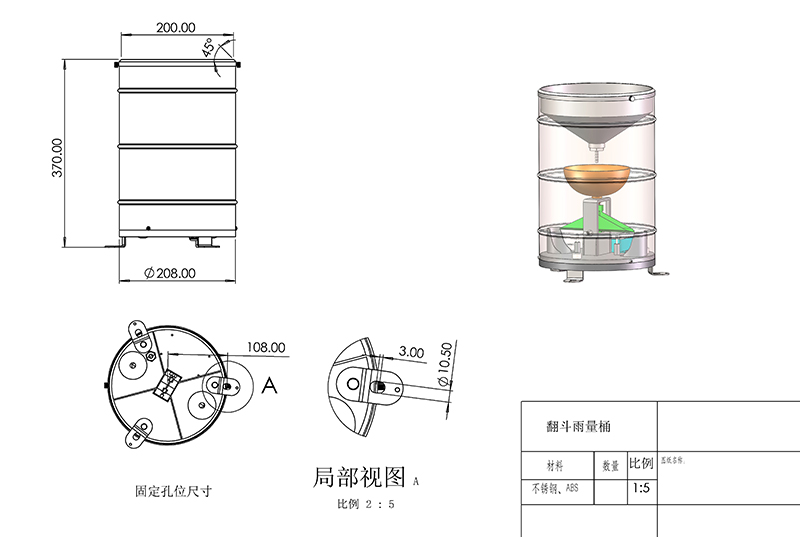

3.Rainfall measuring equipment product size diagram
Address:https://tianqiongsensor.com/Rain-Sensor/rainfall-measuring-equipment.html
Previous Article ：no more
Next Article：Optical Rain Gauge
-
