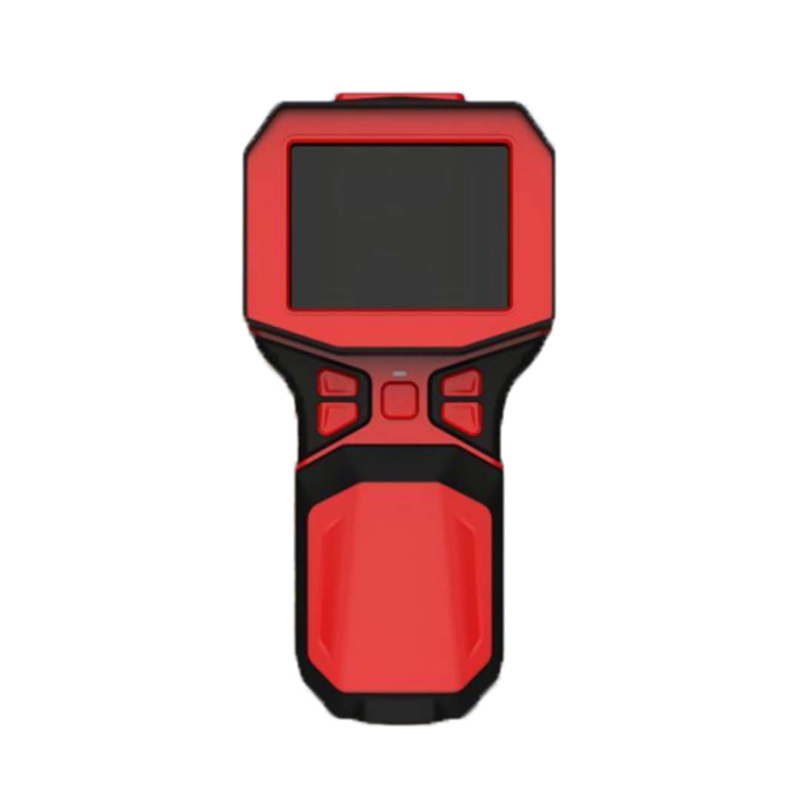

Infrared Thermal Imaging Camera

Infrared Thermal Imaging Camera Product Introduction

Infrared Thermal Imaging Camera is used for continuous temperature measurement and is suitable for industrial inspection, maintenance, leak detection and machine troubleshooting.

1.Display screen: ≥3.5 inches, supports screen brightness adjustment, and the sampling frame rate is not less than 60 frames/second.★

2.Detector pixels: ≥384×288.

3.Temperature measurement range: -40℃~1200℃.

4.Noise equivalent temperature difference (NETD): ≤50mK.

5.Working band: 8~14μm.

6.Image mode: ≥8 types, supports white heat, black heat, fire protection, fire, search and rescue, picture-in-picture, visible light and fusion modes, and has the functions of temperature measurement value, battery consumption, temperature ruler, photography or photography status display.★

7.Zoom function: Supports 2x and 4x digital zoom.

8.It has infrared mode and visible light mode.The two modes can be switched quickly, and the visible light resolution is ≥5 million pixels.★

9.Supports the real-time viewing and saved pictures and videos of this machine, and supports the real-time deletion of video pictures of this machine.★

10.It has laser indicator function, electronic compass pointing function, hot and cold spot tracking function, and automatic tracking function of the maximum temperature and minimum temperature of the full screen, which can display the highest, lowest temperature and center point temperature at the same time.★

11.It has laser ranging function, which can measure and display the straight line distance between the measured object and the host; ★

12.Laser ranging range: ≥600m;

13.Working duration in a specific environment at high temperature: ≥30min at 80℃; ≥10min at 120℃; ≥5min at 260℃;

14.Protection level: IP67.★

15.The top of the main unit is equipped with a metal hook and a telescopic buckle, which can hang the thermal imager on the chest.The vertical load capacity of the telescopic buckle is ≥20Kg, the retraction force is ≥1.5Kg, and the telescopic length is ≥50cm.★

16.The mass of the host (including battery) is ≤800g, and the size of the host is ≤205mm*110mm*80mm.★

17.Power supply method: It is powered by a detachable lithium battery, with a battery life of ≥4h/block.The host and battery have Type-C interface, which supports charging of the unit and direct charging of the battery.★

18.Working temperature: better than the range of -20℃~+60℃.

19.Comply with the standard requirements of XF/T 635-2023 "Infrared Thermal Imager for Fire Fighting".★

20.It is necessary to have shock absorption buffer protection device to meet the 2-meter drop test;
