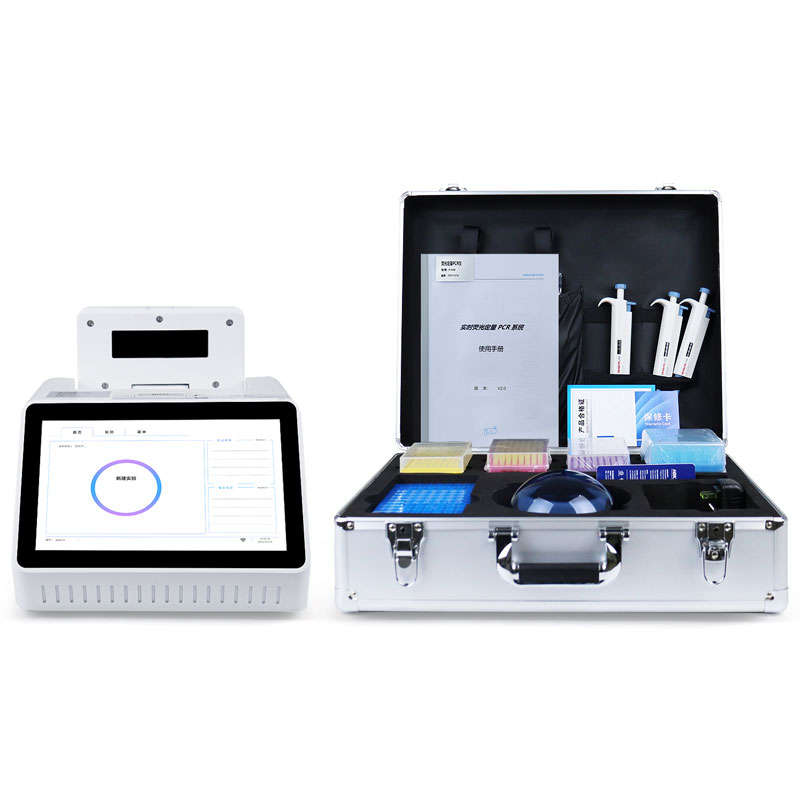

Single channel 8 hole African swine fever detector

1.Single channel 8 hole African swine fever detector instrument use

Single channel 8 hole African swine fever detector is a real-time PCR based African swine fever test for clinical confirmation and detection in blood, serum, etc.African swine fever virus detection is an important measure in the prevention and control of African swine fever and is of great significance.In order to further improve the accuracy of African swine fever virus test results and standardize the production, operation and use of African swine fever virus diagnostic products, starting from January 1, 2021, all relevant departments and units will conduct African swine fever virus testing on pigs and their products during animal quarantine or disease monitoring and diagnosis.They should use African swine fever virus diagnostic products that have obtained the product approval number issued by the Ministry of Agriculture and Rural Affairs to ensure the accurate test results.

Single channel 8 hole African swine fever detector (real-time fluorescence quantitative PCR instrument supports variable temperature detection) is used to run virus detection experiments and analyze experimental data; the instrument can be operated in the laboratory, and can also be used in field scientific experiments.In combination with corresponding reagents, the target nucleic acids in the analytes or other analytes taken from the sample to be detected are fast and accurate qualitative detection.

The African swine fever detector has equipped the African swine fever virus fluorescent PCR detection kit and the African swine fever virus fluorescent PCR nucleic acid detection kit have both obtained product approval from the Ministry of Agriculture and Rural Affairs, which can meet the needs of rapid on-site detection of African swine fever nucleic acid.It can quantitatively and quickly diagnose animal husbandry diseases such as African swine fever, avian influenza, swine fever, pig blue ear, pseudora, etc., and is widely used in breeding farms, slaughterhouses, food processing plants, meat product deep processing enterprises, Ministry of Agriculture and Rural Affairs, Animal Husbandry Bureau, and Inspection and Quarantine Units.

Experiments need to undergo special training in laboratory technology and instruments and software operations, and have proficient relevant operating skills.

2.Single channel 8 hole African swine fever detector instrument features

1.Small size, light weight, easy to carry.Easily meet the needs of going out experiments.

2.Built-in 7-inch high-definition capacitor screen PDA, touch screen operation, simple and fast.

3.Marlow's high-quality Peltier refrigeration plate, combined with Germany's high-end PT1000 temperature sensor and the temperature control mode of the electrical resistance heating compensation edge, the maximum temperature increase speed is 7℃ and the maximum temperature decrease speed is 5℃, greatly shortening the experimental time.

4.The 3s fast lighting mode of the whole plate ensures consistency of the hole position of the experimental results.

5.Concise and intuitive software guidance, easily enable detection experiments.

3.Single channel 8 hole African swine fever detector application field

Basic scientific research

Pathogen detection

Adulterated meat products

Genetically modified test

Food safety testing

Drug development and rational use of medicine

Gene expression

Water monitoring

4.Single channel 8 hole African swine fever detector technical parameters

Sample capacity: 8x0.2ml, support 8-connection tube

Suitable consumables: Common transparent PCR consumables, 8x0.2ml drain pipe, 0.2ml single tube

Reaction system: 5-120ul reaction mode system

Heating/refrigeration module: imported semiconductor thermoelectric module

Temperature control range: 4°C-99°C

Average cooling rate ≥2°C/sec

Temperature control accuracy: ≤±0.1°C

Temperature uniformity: ≤± 0.2°C

Number of temperature control areas: multiple points (2 points)

Number of gradients: 0

Gradient temperature range: None

Gradient hole number: None

Exciting light source: maintenance-free LED

Excitation light wavelength range: 400-700nm

Detection components: imported photodetector

Number of detection channels: standard 1 channel (FAM), high-end (optional) (FAM, VIC)

Suitable dyes and probes: FAM/SYBR Green I, VIC/HEX/CY3 (optional), ROX/Texas Red (optional), Cy5, TAMARA (optional)

Software functions: fluorescence quantitative PCR system software; real-time amplification reaction curve function; real-time reaction curve display of specific specimens; data analysis function;

Automatic determination function of Yin and Yang results; graphical display function.

Noise: <45dB

Screen size: 7 inches (HD)

Touch screen: capacitive

External USB: Supports data import and export

Heat cover: automatic pressure adjustment

Appearance size: 290(W)*308(L)*130(H)

Box size: 75 length * 38 width * 19 height cm
