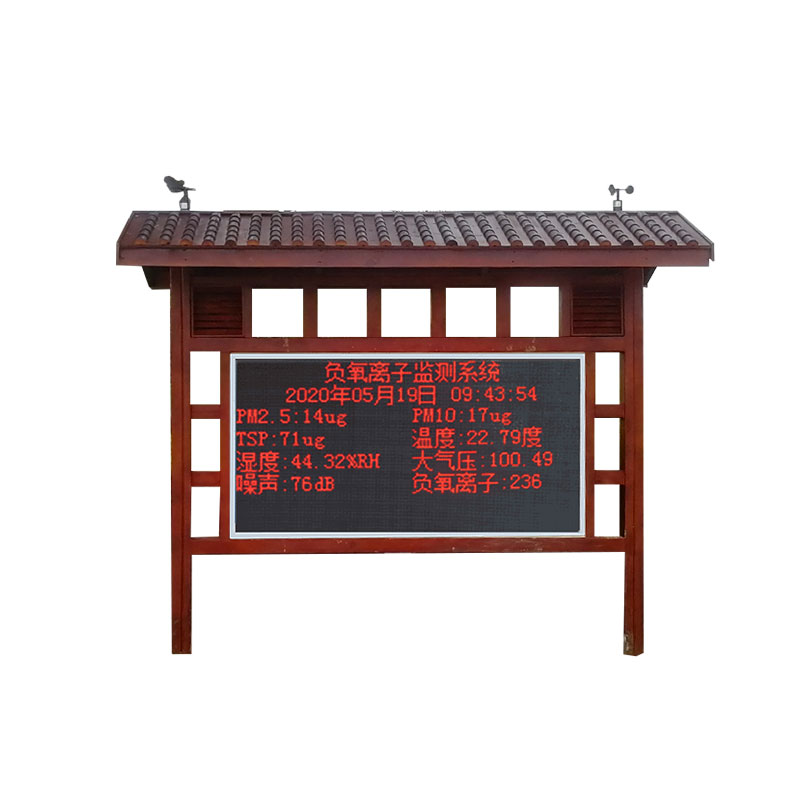

Environmental Monitoring Station

1.Overview of Environmental Monitoring Station :

Environmental Monitoring Station continuously monitors and records all environmental conditions, including temperature, humidity, negative oxygen ions, PM2.5, PM10, etc.The Environmental Monitoring Station monitoring project includes negative oxygen ions, pm2.5, pm10, temperature, humidity, air pressure, oxygen content, noise, wind speed, wind direction, etc.It is a monitoring system for real-time environmental meteorological monitoring and release in forestry, scenic spots, parks, environmental protection, meteorology, agriculture and other fields.It mainly conducts centralized monitoring and management of the air quality environment of scenic spots and humidity parks.It is an automated monitoring system that can be monitored and recorded in 24 hours without interruption.The system can monitor and record large areas of air quality, and transmit data to the PC in real time, use the system monitoring software to store and analyze data, and output print historical data and curve charts.It can also have on-site sound and light alarms, telephone alarms, mobile phone short message alarms, network client alarms, etc.

Environmental Monitoring Station can monitor a variety of environmental factors at the same time, and can expand and increase or decrease according to user needs, and transmit data from the monitored environment 24 hours a day.The unique modular structural design, various sensors are interchangeable, and are equipped with professional installation brackets, which can install instruments and equipment on walls or columns, making it extremely convenient to operate and maintain later.

2.Features of Environmental Monitoring Station System

Air quality and environmental data are collected in real time, and the acquisition interval reaches MS level, and the response is fast.

Track and record environmental changes at each point throughout the whole process;

Users can view and analyze data through data management software and archive and print out charts or reports;

LCD display, the real-time air quality environment on site is clear at a glance;

Digital signal output, interface with RS485 communication.Various communication methods can be expanded according to actual needs, such as wifi, GPRS transmission, etc.;

The output control function can be expanded as needed, and the air quality monitoring system can cooperate well with the park spray system to realize data sharing and display.The monitoring system can be operated independently with the spray system, or can be linked and intelligently controlled with the spray system.

High stability can work continuously for 24 hours.

The whole machine adopts a lightning protection design, which is not easily damaged in places with many thunderstorms.

3.Environmental Monitoring Station system composition:

The system consists of atmospheric Environmental Monitoring Station, meteorological environment monitoring system, data display analysis system, early warning control system, wireless transmission system, background data processing system and information monitoring management platform; the data platform is an Internet-based networked platform with monitoring functions for monitoring stations and alarm processing, recording, querying, statistics, report output and other functions.

4.Environmental Monitoring Station provides powerful monitoring functions, and its features are as follows:

1.This system is a set of unmanned places, which can collect and record the air quality changes of monitoring points in real-time 24 hours a day, and display and record and store monitoring information in real time in various ways such as numbers, graphics and images.The monitoring points can be expanded by up to thousands of points.

2.You can set the upper and lower limits of alarms for each monitoring point, and an alarm signal can be automatically issued when the data of the monitored point is abnormal.Alarm methods include: on-site multimedia audio, sound and light alarm, network client alarm, mobile phone short message alarm, etc.Upload alarm information and conduct local and remote monitoring.The system can notify different duty personnel at different times;

3.The air quality monitoring software adopts a standard windows full Chinese graphic interface to display and record the air quality values and curve changes of each monitoring point in real time, and count the historical data, maximum values, minimum values and average values of the monitored quality data, and accumulate data.

4.The system can expand a variety of data analysis and processing software, which can draw bar charts, pie charts, and perform curve fitting.It can be output in TEXT format, and can also be entered into office software such as EXCEL spreadsheets for data processing.

5.Strong data processing and communication capabilities, using computer network communication technology, any computer in the local area network can access the monitoring computer, check the air quality changes of the monitoring points online, and realize remote monitoring.

6.The preparation of control software is managed by software engineering, which is extremely open and scalable.Due to the software-based system design idea that adopts hardware functions and the modular and communication network design of system hardware, the system can upgrade software functions and expand hardware types as needed.

8.Interfaces are reserved during system design, and hardware equipment can be added or reduced at any time.The system only needs to make a small amount of changes and can be completed in a very short time.

9.The system is grounded with reliability to prevent static electricity.

10.The system uses single-channel and multi-channel bus wiring, which greatly reduces the wiring engineering volume, wire and engineering cost.And since it is a digital signal, there will be no transmission error or signal loss.

5.Environmental Monitoring Station technical solution product configuration

6.Environmental Monitoring Station related technical indicators

Common negative oxygen ion grade standards and relationship table with health
