IoT Water Buoy for Water Quality Monitoring

1.Introduction to IoT Water Buoy for Water Quality Monitoring

IoT Water Buoy for Water Quality Monitoring uses buoy observation technology to monitor water quality continuously throughout the day and at fixed points.

1.IoT Water Buoy for Water Quality MonitoringSFB adopts an enhanced integrated cone structure, which increases equipment stability and durability and is more in line with floating engineering.

Real-time measurement of hydrological, water quality and meteorological parameters in lakes or basins.The system integrates data acquisition and transmission, and has SMS alarm function and automatic light sensing function beyond the standard.It has the characteristics of many measurement parameters, high measurement accuracy, large storage capacity, convenient network formation, and stable operation.The float adopts an unattended intelligent control system to complete the data collection and transmission of multiple sensors; solar panels and large-capacity batteries form a solar power supply system, which can ensure the power required for the system to work in the field for a long time; the float target is made of ultra-high molecular polyethylene material, and has good anti-corrosion ability, prevent biological adhesion, non-fading, strong collision resistance, lightning resistance, non-magneticity, etc., and is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.

2.The SFB06 float consists of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, turbidity), data collector, communication system, power supply system, overall bracket, and water quality monitoring platform.At the same time, it can expand many water quality factors such as chlorophyll and COD.The data collector has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.

2.IoT Water Buoy for Water Quality Monitoring product features

1.Easy to deploy: All types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system is quickly launched;

2.Easy maintenance: After the equipment is installed, it can work by itself, without manual duty, and the normal operation of the equipment can be ensured through remote monitoring;

3.Easy to expand: All sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4.Low power consumption: The device can operate for a long time in a low power consumption state, increasing the convenience of the device;

5.Real-time: The data monitored by the device is transmitted to the cloud platform in real time, improving the timeliness of environmental data feedback.

3.IoT Water Buoy for Water Quality Monitoring Technical Parameters

1.Main parameters

The main parameters of optional sensors

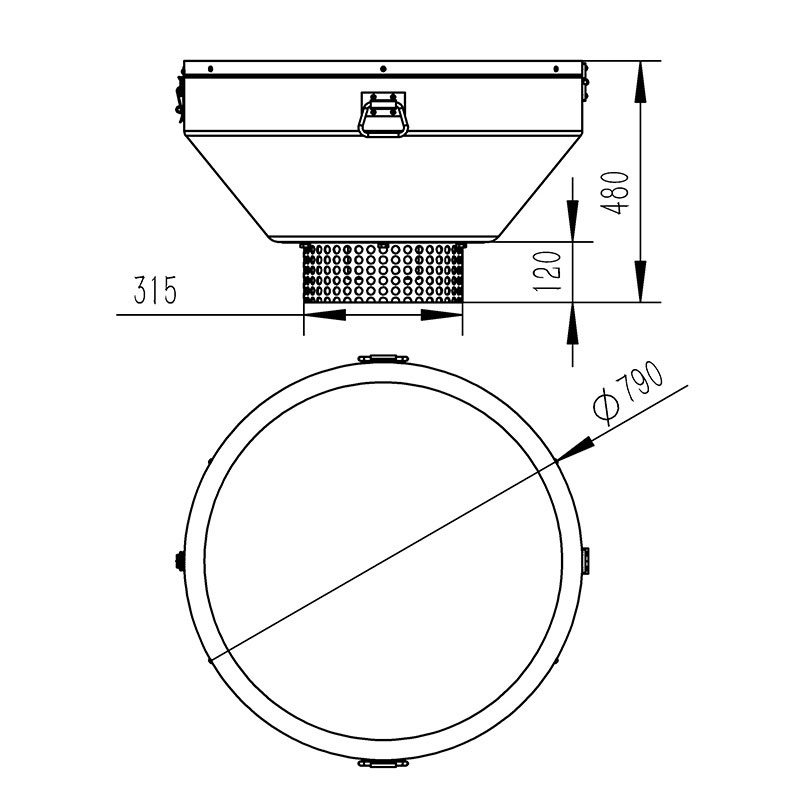

4.IoT Water Buoy for Water Quality Monitoring product size diagram

5.IoT Water Buoy for Water Quality Monitoring device installation requirements

1.Stay away from high-power radio transmitters

2.Stay away from high-voltage transmission lines and microwave radio transmission channels

3.Try to be close to the data transmission network

4.Stay away from strong electromagnetic interference

6.Introduction to IoT Water Buoy for Water Quality Monitoring Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phone and PC browsers.There is no need to install additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server.Cloud data storage, stable and reliable, easy to scale, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
