Seismic Aftershock Monitoring System

Seismic Aftershock Monitoring System Product Introduction

Seismic Aftershock Monitoring System provides key information on aftershocks after a major earthquake and monitors post-earthquake displacement and vibration.

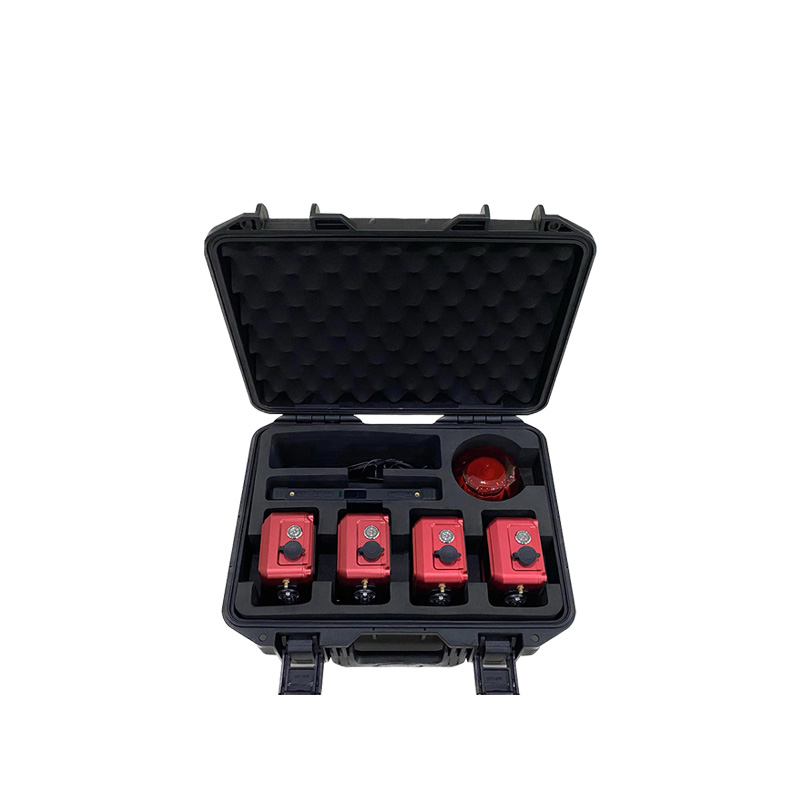

1.The entire set of equipment is mainly composed of a control terminal (host), a Seismic Aftershock Monitoring System, and acousto-optical alarm.

2.Control terminal (host): adopts a full-color LCD display with a screen size of ≥8 inches.▲

3.A type of control mode, buttons and touch mode, with photography, video recording and storage functions, can display the monitored object, and the video screen can be enlarged and reduced.The display screen can display the power of each monitor, the real-time angular vibration value, the connection status of each monitor and the control terminal (host), and the alarm status.

4.Supports Beidou positioning function, and can display position information through the display screen.It has alarm threshold adjustment, alarm volume adjustment, charging, alarm signals of each monitor and wireless transmission functions.

5.The control terminal (host) can realize linkage alarm monitoring with each monitor.It can play back videos and photos stored by the host according to time.When viewing photos, it can switch by sliding the touch screen left and right, and can zoom to view.When playing back videos, it can be fast forward or rewind.

6.The color display can display digital states such as displacement and vibration in real time, such as battery capacity, Seismic Aftershock Monitoring System number, alarm value, operation, connection status, etc.The diagonal dimension of the display screen is ≥8.5cm, the display color is ≥5, and the resolution is ≥320*480.▲

7.It has an intelligent management cloud platform: the device's access status, real-time detection information, device working status, power information, etc.can be viewed from the platform interface.The platform has built-in instruction manual, which can be viewed in real time through the platform; it has a picture display function, which can display the device location, online status, and home permissions; it can group access devices, realize the same screen display of multiple types and multiple devices, and can check the device historical data.▲

8.When the monitoring value deviates from the set value, it can automatically alarm, emit an acoustic and light alarm signal, and manually release the alarm signal through the button.The control terminal (host) can realize linkage alarm monitoring with each Seismic Aftershock Monitoring System (inclination monitor).

9.Number of alarm LED flashes: ≥8.The alarm sound intensity is ≥110dB, and the alarm sound can be turned on and off.

10.The alarm threshold can be adjusted as needed, and supports two ways to fix the alarm value and arbitrary set the alarm value.The 7-speed fixed alarm threshold value can be set through shortcut keys 0.5°, 1.0°, 2.6°, 5.0°, 8.0°, 10.0°, and 20.0°, or 0.1° can be set stepwise, and the adjustable range can be: 0.1-60°, and any scale value can be continuously adjusted.

11.The wireless transmission method is used between the equipment, and the communication distance should be ≥600 meters (open and uninterference areas) ▲

12 can monitor the display of X, Y and Z axes through three-dimensional (360°), with a resolution of 0.01°.

13.Seismic Aftershock Monitoring System measurement accuracy ≤0.1°.

14.Seismic Aftershock Monitoring System (inclination monitor) maximum monitoring distance ≥100m (open and uninterrupted areas).

15.It has one-click search function, which can automatically alarm the monitors and reversely locate the monitor position.▲

16.The continuous working time of the entire set of equipment is ≥12h.

17.Operating temperature: -25℃ to 60℃, storage temperature: -40℃ to 70℃.

18.Protection level: IP67.▲

19.Provide nationally recognized third-party testing reports at the provincial level (inclusive) or above (the test reports have CMA or CNAS marks) during bidding, and the test reports reflect the above technical indicators with "▲".
